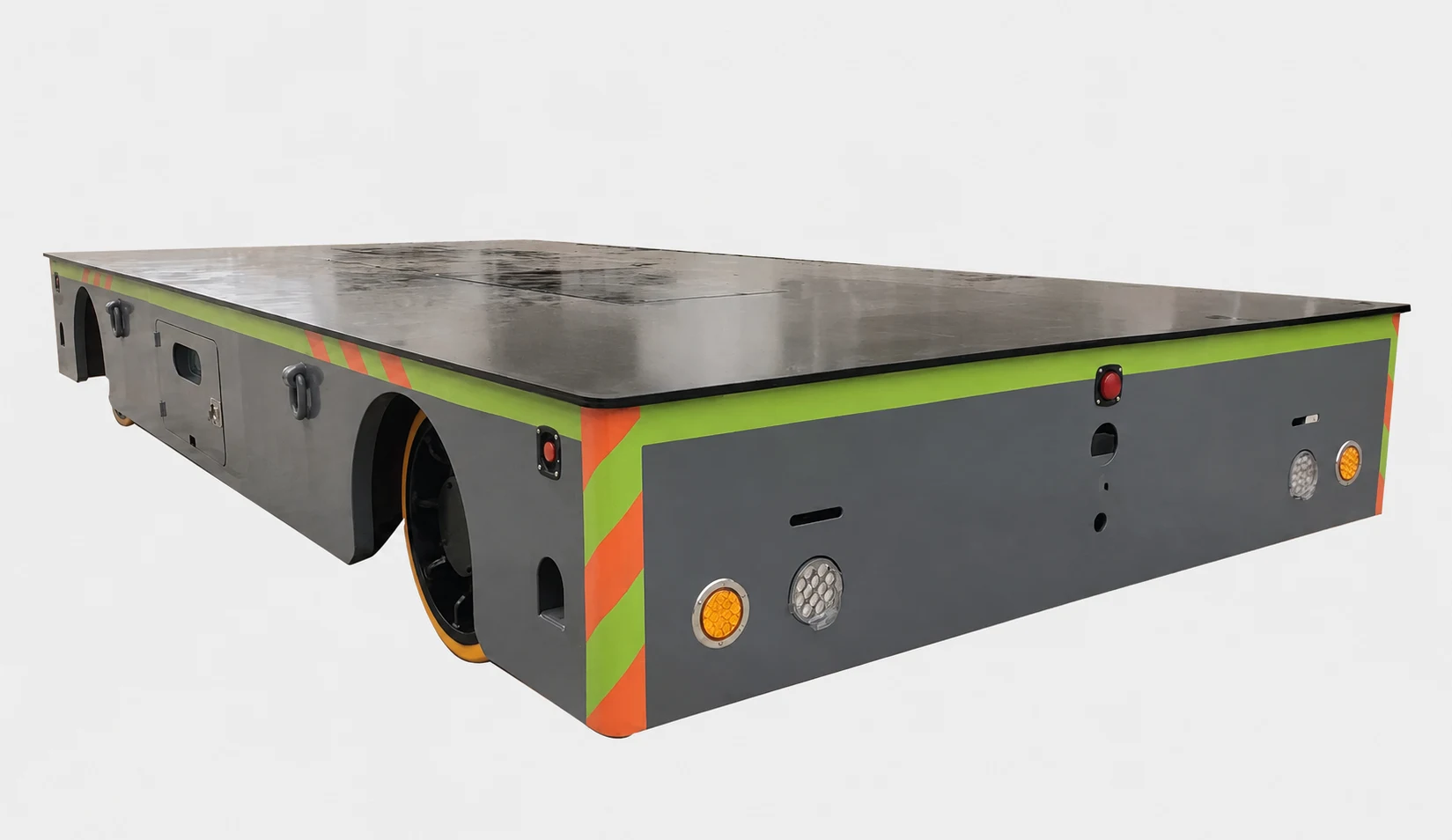

Trackless electric transfer cart

Structure and operating principle

A battery-powered trackless cart transfers heavy loads across suitable factory floors without a fixed rail route.

Battery traction moves a supported load on a steerable wheeled chassis without fixed rails. Floor contact loads, steering envelope and deck support geometry define the route requirements.

• Battery-electric traction for ground-level transport.
• Trackless movement avoids the need for a dedicated rail installation.
• Battery capacity and voltage vary by model and intended load.

Application and selection

Connects factory bays whose handover positions change or cannot be joined by rail. The available floor area must accommodate the whole load envelope, including corners and reversing areas.

Working method

1. Before work, authorised personnel confirm the load and its centre of gravity, the permitted machine configuration, the route and receiving position. Complete the checks specified for the equipment, verify protective functions by the approved method and stop if a defect affects safe operation.

2. Secure the load on the deck, establish a clear route and check steering and braking before departure. Travel within the approved speed and slope limits and stop at the handover station before releasing restraints.

3. After the task, place the load on stable supports and leave the equipment in its prescribed safe state. Record faults and abnormal events. Maintenance or jam clearance requires secure isolation of relevant energy, including stored hydraulic, pneumatic and gravitational energy.

Precautions and maintenance

An open floor is not automatically a suitable transport route: check joints, drains, obstacles and surface strength. Do not infer autonomous navigation, passenger carriage or explosion protection from battery power.

Inspection frequency, wear/discard criteria, lubrication, brake adjustment and replacement parts follow the supplied instructions and applicable local requirements. Only competent personnel may maintain the equipment; return to service follows the prescribed checks.

Configuration and standards

This is an equipment-selection and operating-principle overview, not a complete operator manual, lift plan or certificate. Verify rated load, duty, geometry, environment and protective functions against the nameplate, approved drawings and delivered instructions. Do not combine separate series maxima into one promised configuration.

Requirements follow the destination and installation, not the website language. China: determine the applicable GB/T references and statutory equipment obligations. EAEU destinations: check the applicable TR CU/EAEU regulations, amendments and conformity documents. English-speaking markets: select the relevant national rules; US OSHA and UK HSE references are not universal law. EU projects require their own applicable conformity assessment.
