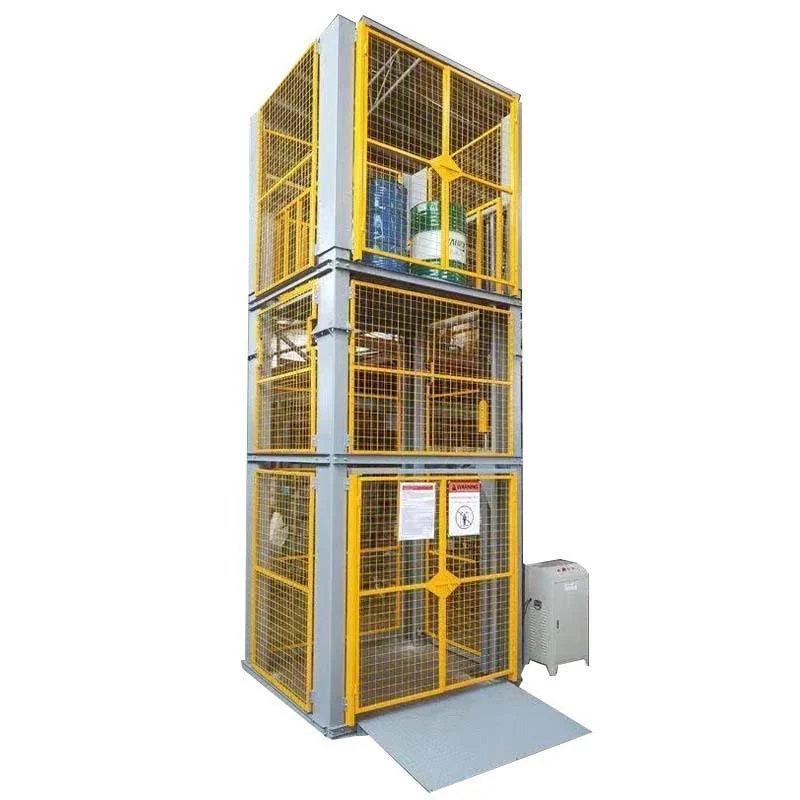

Guide-rail hydraulic goods lift

Structure and operating principle

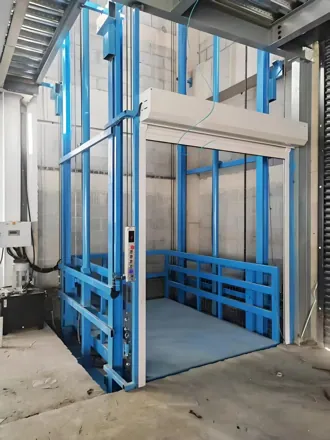

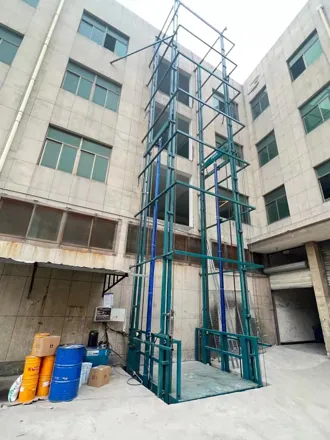

A non-scissor hydraulic lift moves goods between floors along a guided lifting structure.

A guided platform is raised hydraulically between fixed levels. Guide structure, landing access, platform support and hydraulic protection form an integrated installation; this entry is for goods transport.

Application and selection

For moving goods between factory or warehouse floors when the selected installation and local classification permit it. Landing dimensions, loading method and floor reactions must be confirmed before installation.

Working method

1. Before work, authorised personnel confirm the load and its centre of gravity, the permitted machine configuration, the route and receiving position. Complete the checks specified for the equipment, verify protective functions by the approved method and stop if a defect affects safe operation.

2. Stop at the correct landing, secure the platform for loading and keep goods within the allowed envelope. Close and verify access protection before travel, then permit unloading only when the platform is correctly aligned and stationary.

3. After the task, place the load on stable supports and leave the equipment in its prescribed safe state. Record faults and abnormal events. Maintenance or jam clearance requires secure isolation of relevant energy, including stored hydraulic, pneumatic and gravitational energy.

Precautions and maintenance

Do not carry people on this goods-only equipment or bypass landing-gate interlocks. Never enter beneath a raised platform without the prescribed mechanical support and energy isolation. Confirm the applicable lift or lifting-platform rules for the actual installation.

Inspection frequency, wear/discard criteria, lubrication, brake adjustment and replacement parts follow the supplied instructions and applicable local requirements. Only competent personnel may maintain the equipment; return to service follows the prescribed checks.

Configuration and standards

This is an equipment-selection and operating-principle overview, not a complete operator manual, lift plan or certificate. Verify rated load, duty, geometry, environment and protective functions against the nameplate, approved drawings and delivered instructions. Do not combine separate series maxima into one promised configuration.

Requirements follow the destination and installation, not the website language. China: determine the applicable GB/T references and statutory equipment obligations. EAEU destinations: check the applicable TR CU/EAEU regulations, amendments and conformity documents. English-speaking markets: select the relevant national rules; US OSHA and UK HSE references are not universal law. EU projects require their own applicable conformity assessment.
