Construction truss gantry crane

Structure and operating principle

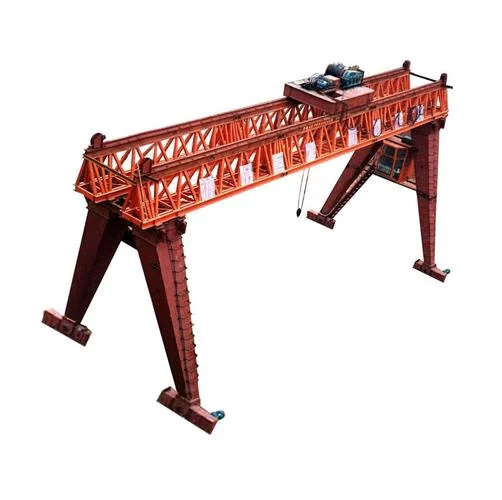

A truss gantry bridge with a trolley for construction material handling.

The bridge uses a truss arrangement whose chords, diagonals and joints carry the lifting and travel loads. Its open form does not remove wind loading, fatigue assessment or the need to inspect load-bearing connections.

Application and selection

A project option for handling components and construction materials over a defined work zone. Assembly access, transport dimensions, inspection access and the actual lift cycle should guide selection.

Working method

1. Before work, authorised personnel confirm the load and its centre of gravity, the permitted machine configuration, the route and receiving position. Complete the checks specified for the equipment, verify protective functions by the approved method and stop if a defect affects safe operation.

2. Use the approved hook locations and travel envelope. Keep the load clear of bracing and legs during lifting and cross travel; check connections and track condition as part of the site inspection programme.

3. After the task, place the load on stable supports and leave the equipment in its prescribed safe state. Record faults and abnormal events. Maintenance or jam clearance requires secure isolation of relevant energy, including stored hydraulic, pneumatic and gravitational energy.

Precautions and maintenance

Do not attach an additional hoist, lifting point, cladding or advertising panel to the truss without checking the changed loads and wind area. Stop work after impact or visible connection damage until assessed.

Inspection frequency, wear/discard criteria, lubrication, brake adjustment and replacement parts follow the supplied instructions and applicable local requirements. Only competent personnel may maintain the equipment; return to service follows the prescribed checks.

Configuration and standards

This is an equipment-selection and operating-principle overview, not a complete operator manual, lift plan or certificate. Verify rated load, duty, geometry, environment and protective functions against the nameplate, approved drawings and delivered instructions. Do not combine separate series maxima into one promised configuration.

Requirements follow the destination and installation, not the website language. China: determine the applicable GB/T references and statutory equipment obligations. EAEU destinations: check the applicable TR CU/EAEU regulations, amendments and conformity documents. English-speaking markets: select the relevant national rules; US OSHA and UK HSE references are not universal law. EU projects require their own applicable conformity assessment.
